Drilled Glass for Railings

Yehauxuan Drilled Glass for Railings is suitable for both column-type and through-bar type railing installations, combining transparent aesthetics with structural stability. It is impact-resistant, chip-resistant, and complies with the "Technical Specification for Application of Architectural Glass" JGJ113 standard, making it suitable for indoor and outdoor applications such as balconies, staircases, and commercial corridors.

Core Materials and Processes

Drilled Glass for Railings uses 12-15mm tempered or double-layered laminated tempered glass as its base material. Upon breakage, it forms blunt-angled particles, eliminating the risk of shattering. Laser drilling technology is used for non-contact processing, preventing micro-cracks in the glass. The hole walls have a fine roughness Ra < 0.5μm, eliminating the need for additional grinding and chamfering. The glass surface is cleaned and decontaminated before drilling, and continuous water cooling is used during drilling to prevent high-temperature breakage.

Specifications and Compatibility

Drilled Glass for Railings supports custom round, square, and irregularly shaped holes with diameters ranging from φ1-30mm. A safety distance of ≥20mm is maintained between the hole and the glass edge to avoid stress concentration. It is compatible with 304/316 stainless steel posts and aluminum profile rails. The modular design adapts to different railing installation methods, and personalized size customization is supported.

Performance Advantages

High-precision laser drilling ensures a snug fit and structural stability; the glass is strengthened, resulting in excellent edge crack resistance after drilling; light transmittance is unaffected by drilling, maintaining a sense of openness; the surface is free of scratches and chipping, with a clean appearance, strong weather resistance, and suitable for both indoor and outdoor use.

Applicable Scenarios

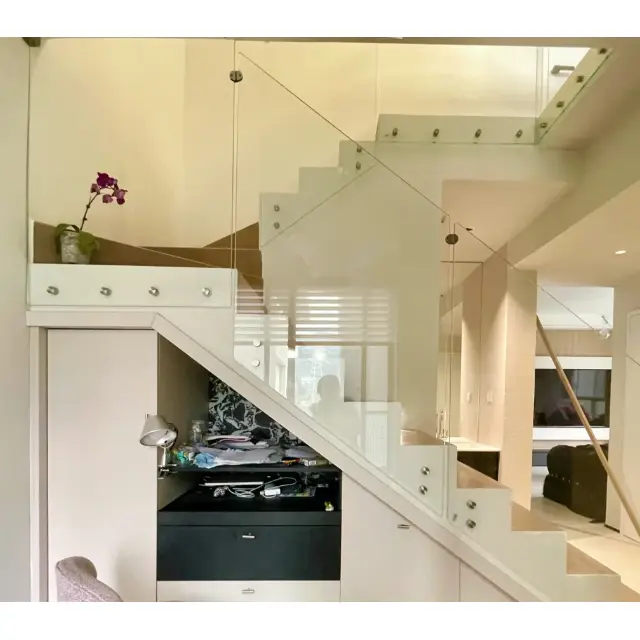

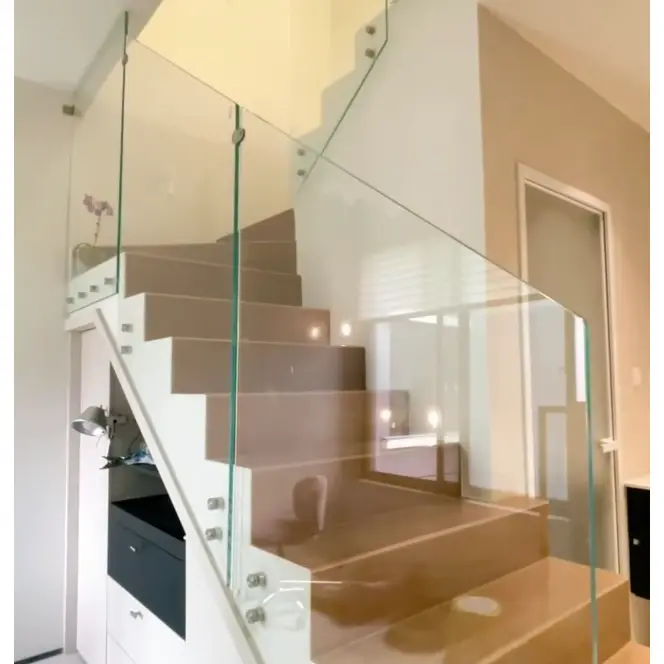

Residential balconies, duplex staircases, villa terraces; hotel, shopping mall, and office building atrium railings; scenic viewing platforms, swimming pool perimeter railings, etc.

FAQ:

1. Q: Will the glass strength decrease after drilling?

A: No. High-grade tempered glass is used, combined with laser drilling and edge strengthening technology, resulting in no stress concentration at the hole positions. The overall strength meets railing safety standards, and the impact resistance is consistent with ordinary railing glass.

2. Q: Can the hole diameter and position of Drilled Glass for Railings be customized?

A: Yes. The hole diameter, hole type (round/square/irregular shape), and hole position distribution can be customized according to installation requirements. Design drawings must be provided in advance, and the factory will process according to precise parameters.
