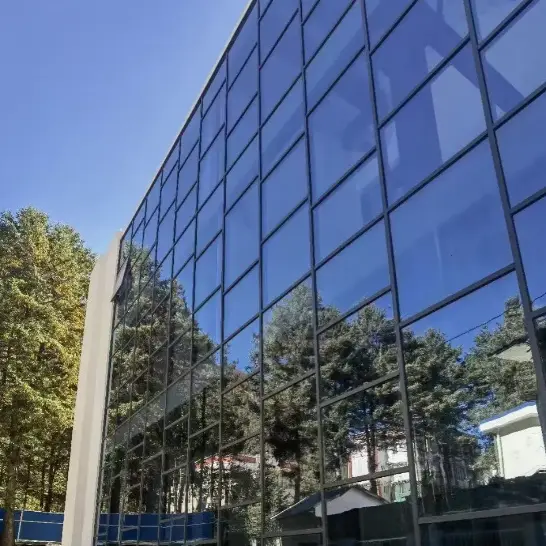

Yehaoxuan Framed Curtain Walls use 6063-T5 high-precision aluminum alloy as the main frame material, paired with tempered/laminated double-glazed glass. They utilize a modular installation process with factory prefabrication and on-site assembly, and are available in three main types: visible frame, hidden frame, and semi-hidden frame. They offer structural stability, excellent natural lighting, superior sealing and insulation, and weather resistance. The entire series supports customized glass configurations, profile colors, and grid designs, suitable for the facades of high-rise residential buildings, office buildings, and commercial complexes. They comply with national curtain wall engineering technical specifications, balancing architectural aesthetics and energy efficiency, making them a mainstream and highly adaptable choice for modern building facades.
1. Two Mainstream Models, Adaptable to Your Needs
- Visible Frame Curtain Wall: The aluminum profile frame is exposed, with clear divisions and a straightforward structure. Installation and maintenance are convenient, and it offers excellent wind pressure resistance. Suitable for public buildings such as office buildings and industrial parks, with low future glass replacement costs.
- Hidden Frame Curtain Wall: The frame is completely hidden behind the glass, resulting in a transparent and minimalist facade without visible profile lines, creating an integrated visual effect. Suitable for high-end commercial complexes and luxury residences, combining aesthetics and quality.
- Semi-Hidden Frame Curtain Wall: Available in two types: vertical frames hidden and horizontal frames visible, or horizontal frames hidden and vertical frames visible. It combines transparent aesthetics with structural stability, suitable for buildings that seek a layered facade, balancing design and ease of construction and maintenance.
2. High-Quality Materials, Dual Guarantee of Safety and Energy Saving
The main frame of the Framed Curtain Walls uses 6063-T5 high-precision aluminum alloy. The profile wall thickness meets national standards and undergoes surface treatments such as anodizing, fluorocarbon coating, and powder coating, providing UV resistance and corrosion resistance. It will not fade or oxidize during outdoor use. The standard glass is tempered double-glazed glass, which can be upgraded to laminated double-glazed, Low-E double-glazed, or ultra-clear double-glazed glass as needed, ensuring sound insulation (sound insulation ≥30dB), thermal insulation (low heat transfer coefficient), and explosion-proof capabilities. It prevents shattering and meets building safety and energy-saving regulations.
3. Exquisite Craftsmanship, Excellent Sealing and Waterproofing
Framed Curtain Walls adopt a multi-layer sealing structure, combined with EPDM weather-resistant rubber strips and neutral silicone weather-resistant sealant, effectively blocking rainwater, wind, sand, and cold and hot air. They offer excellent waterproofing, airtightness, and effectively prevent condensation and water leakage problems in curtain walls. The profiles are precisely cut using CNC technology and seamlessly joined with corner connectors, resulting in high structural accuracy and excellent resistance to wind pressure and seismic deformation, making them suitable for high-rise, super high-rise buildings, and buildings in windy and rainy areas.
4. Customized Design, Adaptable to Diverse Architecture
Framed Curtain Walls support customized grid sizes, frame colors (fluorocarbon paint can be any RAL color, anodizing retains the original metal color), and glass configurations according to the building's facade design. They are adaptable to conventional building facades such as straight lines and broken lines, and can accommodate various architectural styles, including modern minimalist and light luxury. They can also integrate operable vents (top-hung, sliding), meeting the building's natural ventilation needs. The vents are equipped with hardware locks, ensuring both ventilation and security.
5. Standardized Installation, Convenient Maintenance

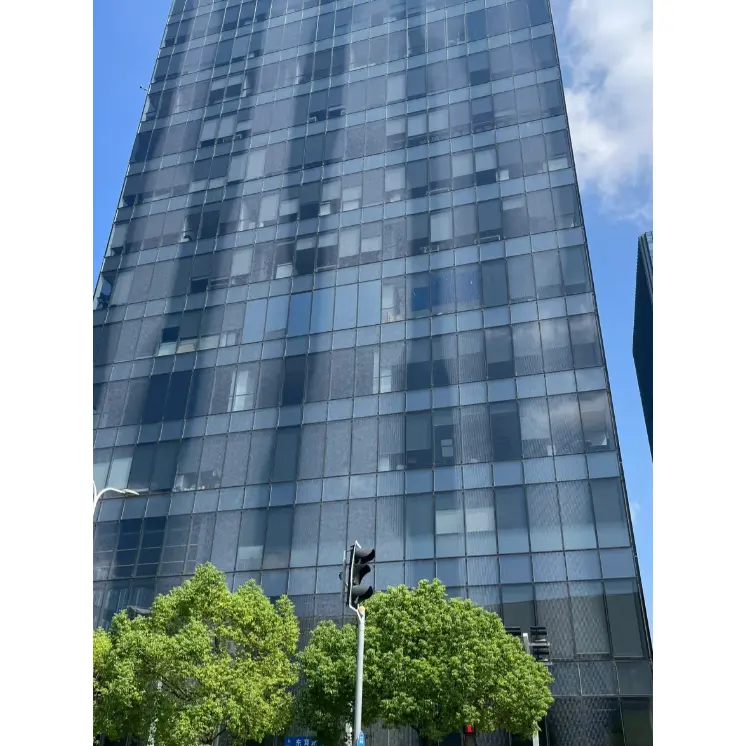

Using a modular installation process, all frames and glass panels are prefabricated in the factory according to standards and assembled on-site according to their numbers. This results in high construction efficiency and controllable precision, reducing on-site construction errors. For framed and semi-framed curtain walls, glass replacement and accessory maintenance do not require large-scale disassembly. Frameless curtain walls are equipped with dedicated maintenance lifting points, making maintenance operations safe and convenient, significantly reducing future operating and maintenance costs.
FAQ
1. What are the core base materials and glass configurations, and can they be upgraded?
The main frame material is 6063-T5 high-precision aluminum alloy, with surface treatment options including anodizing/fluorocarbon spraying/powder coating; the standard glass is tempered double-glazed glass, which can be upgraded to Low-E double-glazed, laminated double-glazed, or ultra-clear double-glazed glass to meet different needs such as sound insulation, thermal insulation, and explosion protection.
2. What are the sealing and waterproofing performance, and will there be water leakage or condensation?
Featuring a multi-layer sealing structure, combined with EPDM weather-resistant rubber strips and neutral silicone sealant, it offers excellent waterproofing, leak resistance, and airtightness; the double-glazed glass contains a built-in desiccant, effectively preventing condensation and making it suitable for various climates, including the rainy south and the dry north.
