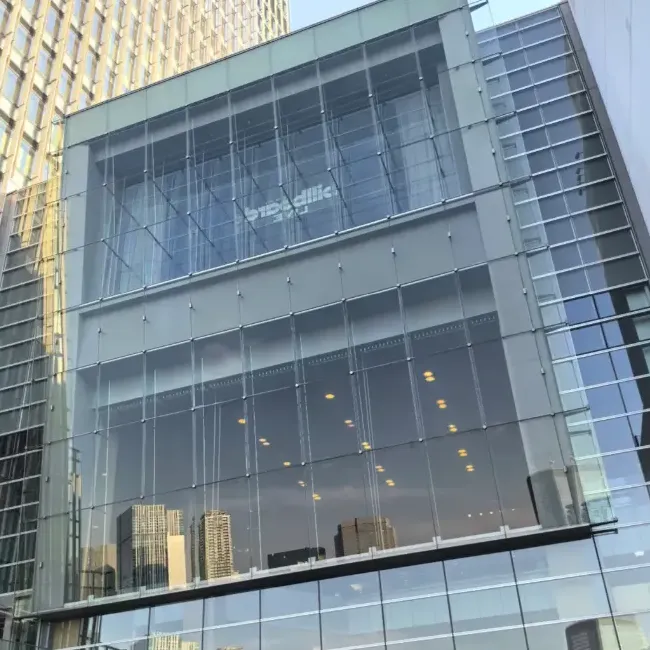

Point-Supported Glass Curtain Walls

Yehaoxuan Point-Supported Glass Curtain Walls support customized glass specifications, claw materials, and frame styles, suitable for commercial buildings, high-end residences, office buildings, and other facade applications, meeting the lighting and aesthetic needs of modern architecture.  They fully comply with building curtain wall safety standards and are easy to install and maintain.

Detailed Introduction

1. Core Materials, Safe and Transparent

The standard surface material is 6+1.52PVB+6mm 3C tempered laminated glass, which can be upgraded to 8+1.52PVB+8mm and 10+2.28PVB+10mm specifications. It boasts a light transmittance of >91%, providing an unobstructed view, and eliminates the risk of shattering and scattering upon breakage. It also offers excellent impact resistance and wind pressure resistance. The connecting claws and adapters are made of 304/316 stainless steel, offering strong corrosion resistance and load-bearing capacity. The frame can be selected from 6063-T5 aluminum alloy or steel structure, which is lightweight and high-strength, adapting to different building load requirements.

2. Frameless Point Support, Aesthetic Design

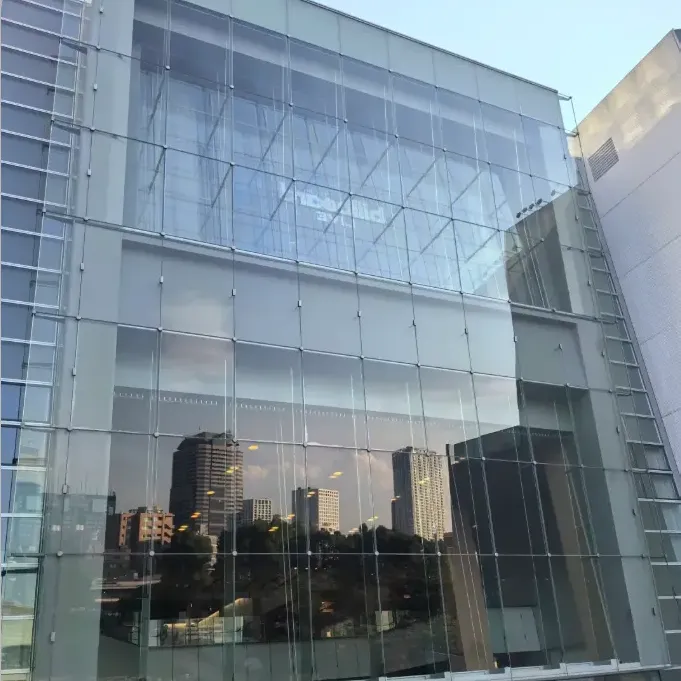

Point-Supported Glass Curtain Walls utilize a frameless point-supported design, fixing the glass at multiple points with stainless steel connecting claws. This eliminates the constraints of traditional frames, creating a minimalist and transparent building facade with clean lines and a strong overall aesthetic.  Claws are available in single, double, and four-claw styles, with polished, brushed, and sandblasted surface treatments, combining fixing functionality with decorative appeal. Claw styles and glass combinations (ultra-clear, frosted, patterned glass, etc.) can be customized according to the building style to enhance the building's appearance.

3. Precision Craftsmanship, Stable and Durable

The glass undergoes multiple processes including precision grinding and chamfering, tempering, and lamination.  The edges are free of sharp edges, and it is resistant to temperature changes and aging. The connection between the connecting claws, glass, and frame is achieved through precise drilling and sealing, combined with weather-resistant silicone sealant, providing waterproofing and leak prevention, effectively isolating rainwater and dust. The overall structure has undergone wind pressure and seismic calculations, conforming to national building curtain wall design specifications, and can withstand strong winds, earthquakes, and other external forces, with a service life of over 20 years.

4. Customized and Adaptable, Applicable to All Areas

Supports full customization of glass specifications, curtain wall dimensions, and claw material, allowing for the creation of flat, curved, and other irregularly shaped point-supported curtain walls, adapting to different building facade designs. The aluminum alloy frame can be treated with fluorocarbon or powder coating, offering a wide range of colors to match different architectural styles of commercial buildings, residential buildings, and office buildings. It is suitable for the entire building facade, and can also be used for partial skylights and viewing balcony curtain walls, flexibly matching building needs.

5. Standardized Installation, Convenient Maintenance

Installation is carried out according to national building curtain wall construction specifications, using a process of on-site measurement, factory prefabrication, and on-site assembly. A professional team provides standardized installation to ensure structural precision and safety. Daily maintenance is simple; the glass surface can be wiped directly, and the stainless steel claws only require regular cleaning.  The sealant can be partially replaced when it ages without requiring complete disassembly. Individual glass panels can be replaced if damaged, resulting in low maintenance costs and high efficiency.

FAQ

1. What are the core surface material specifications for Point-Supported Glass Curtain Walls, and can they be upgraded?

The standard configuration is 6+1.52PVB+6mm 3C tempered laminated glass. It can be upgraded to 8+1.52PVB+8mm and 10+2.28PVB+10mm specifications, and supports customization of ultra-clear, frosted, and patterned glass styles.

2. What are the materials of the connecting claws and adapters, and how to choose them?

The standard configuration uses 304 stainless steel claws and adapters. For coastal and high-salt fog areas, 316 stainless steel can be upgraded for stronger corrosion resistance, adapting to different usage environments.
