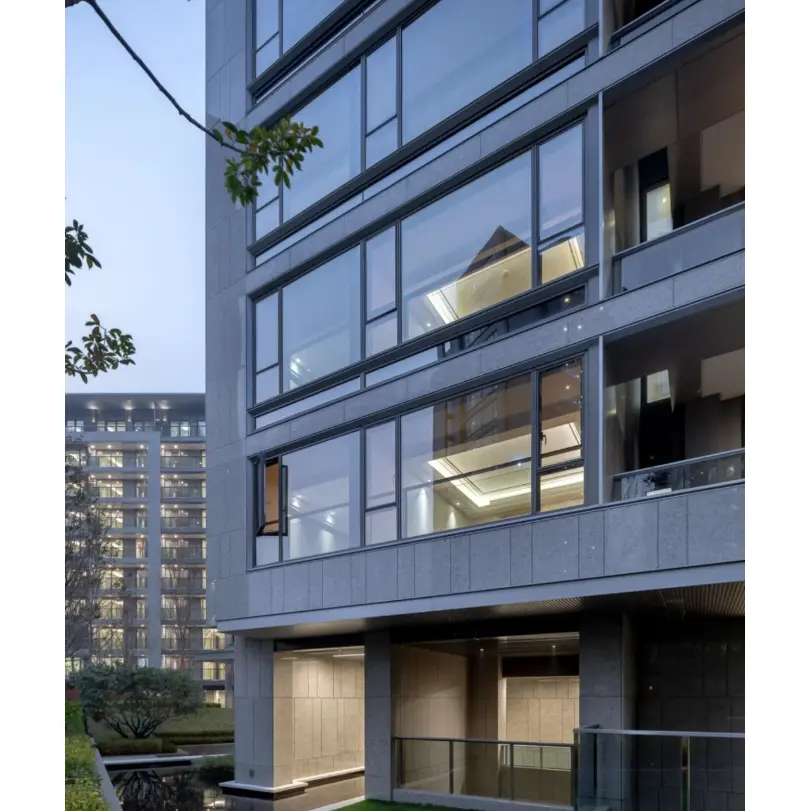

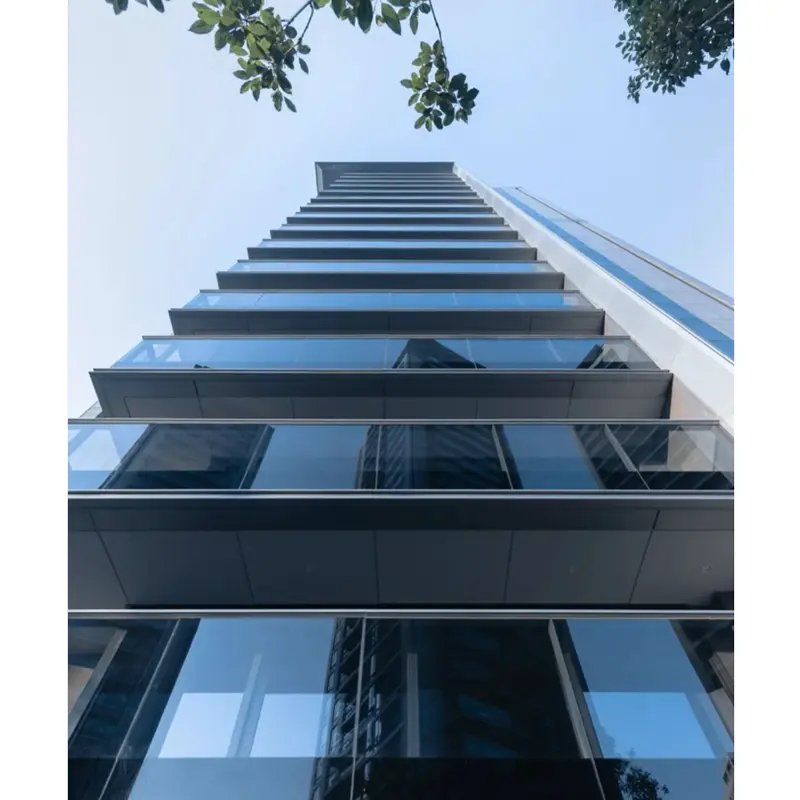

Window-Wall Integrated Unit System

As a professional manufacturer, the modular panels include a complete set of components such as glass panels, insulation layers, and sealing systems. On-site installation only requires hoisting and assembly, significantly improving construction efficiency and project quality. The Window-Wall Integrated Unit System is suitable for various building types, including mid-rise and high-rise residential buildings and commercial complexes. It features efficient installation, stable quality, energy efficiency, durability, and high customization, achieving a high degree of unity between aesthetics and practicality in building facades.

Detailed Introduction

1.Integrated Window-Wall Design

The Window-Wall Integrated Unit System abandons the traditional separate structure of windows and curtain walls, achieving integrated prefabrication of window frames and curtain wall framing. Panels are seamlessly interlocked via male and female columns, eliminating exposed seams and creating a smooth, continuous facade for expansive, transparent views.

Simultaneously integrating lighting, ventilation, insulation, and waterproofing functions, the windows offer flexible opening methods (sliding, outward opening, tilting, etc.), balancing the decorative aspects of the curtain wall with the practicality of windows, meeting both the building's lighting and ventilation needs and the aesthetic design requirements of the facade.

2.Factory Prefabrication for Precision and Efficiency

The unit panels undergo the entire process of profile processing, frame assembly, glass installation, insulation layer bonding, and sealant application and curing in the factory. The prefabrication rate exceeds 90%. The controlled workshop environment ensures uniform sealant joints and precise dimensions, controlling product quality from the source.

No complex on-site assembly is required; the system is simply hoisted and assembled using specialized lifting equipment. Construction can proceed simultaneously with the main structure, significantly shortening the construction period and reducing high-altitude work, resulting in a higher safety factor.

3.Robust Materials, Superior Performance

The Window-Wall Integrated Unit System's main frame uses high-strength thermally broken aluminum alloy profiles with wall thickness conforming to building curtain wall specifications. It is paired with double-glazed Low-E tempered glass, with some models available as laminated glass. This provides impact resistance, prevents spontaneous breakage, offers high light transmittance, and provides excellent heat and sound insulation, reducing noise by 15-20 decibels. Its low heat transfer coefficient meets building energy conservation requirements.

The sealing system employs a double seal of EPDM rubber strips and silicone weather-resistant structural adhesive, combined with a concealed drainage design. It achieves a water tightness level of 5 and an air tightness level of ≥6, exhibiting excellent wind pressure resistance and withstanding severe weather conditions such as heavy rain and strong winds.

4. Multiple Protections, Long-lasting Durability

The Window-Wall Integrated Unit System integrates multiple protection designs including fireproofing, lightning protection, and corrosion resistance. Interlayer filling with Class A fire-resistant rock wool meets building fire compartment requirements. The curtain wall frame and main structure are connected for lightning protection, effectively dissipating lightning strikes. Aluminum alloy profiles undergo fluorocarbon/powder coating treatment, resisting UV rays and acid rain corrosion, ensuring they won't fade or rust outdoors. All accessories are made of 304/316 stainless steel, ensuring a long service life.

5. Customizable and Versatile

It supports personalized customization of size, shape, and panel material. Curved and irregularly shaped panels can be customized according to architectural design needs. Panel options include clear glass, ultra-clear glass, frosted glass, and aluminum single-panel panels, with a rich color palette to suit various architectural styles such as modern minimalist, light luxury, and neo-Chinese.

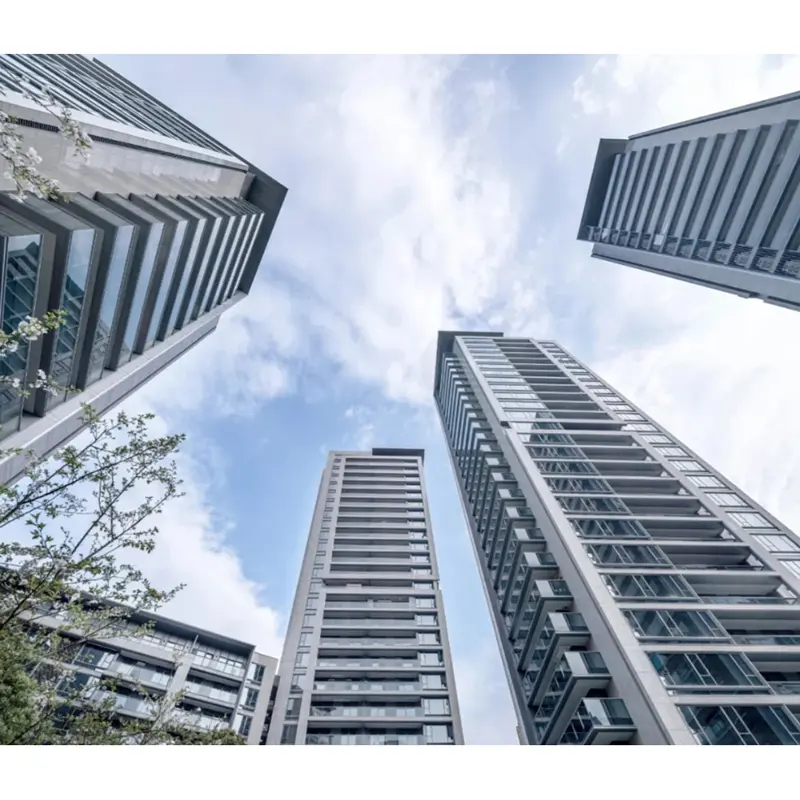

The Window-Wall Integrated Unit System is suitable for high-rise residential buildings, commercial office buildings, hotels, and mixed-use complexes over 100 meters tall. It is also suitable for coastal typhoon areas and windy and rainy regions.

Product FAQ

1. What are the core advantages of the Window-Wall Integrated Unit System compared to traditional split-type window-wall systems?

The integrated design results in a cleaner and more aesthetically pleasing facade with no seams; the factory-prefabricated process ensures more stable quality and increases on-site installation efficiency by over 60%; superior sealing and insulation performance, significantly improved energy efficiency and waterproofing, and reduced maintenance risks.

2. What does factory prefabrication of the unit panels include, and what is the on-site installation process?

The factory completes the entire process, including profile processing, frame assembly, glass/insulation layer installation, sealant application, and adhesive curing; on-site installation only requires structural verification → measurement and layout → panel hoisting → interlocking and splicing → 3D calibration → sealing acceptance, eliminating the need for on-site welding and sealant application.
