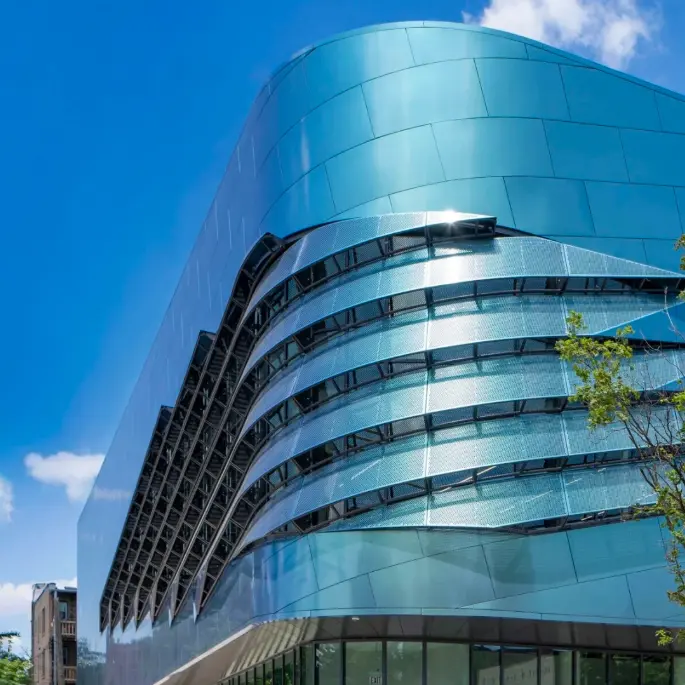

Irregular Shaped Unitized Curtain Walls

As a professional manufacturer, Yehauxuan integrates core technologies such as BIM 3D detailed design, six-way adjustable mounting, and multi-layered sealing and waterproofing, combining customized design, efficient installation, structural stability, and durable sealing. Irregular Shaped Unitized Curtain Walls meet the aesthetic and performance requirements of high-rise buildings, public buildings, and commercial landmarks for irregularly shaped facades, while also complying with national building codes for wind resistance, earthquake resistance, and fire prevention, making them the preferred solution for high-end irregularly shaped building facades.

Product Features

1. Fully Prefabricated Unitized, High-Precision Customization

All Irregular Shaped Unitized Curtain Walls are assembled in-house, with panels, frames, seals, and hardware components completed simultaneously. Utilizing BIM 3D modeling technology, the irregular shapes of buildings are accurately reproduced, with a processing accuracy error of ≤±2mm, effectively avoiding dimensional deviations during on-site construction.

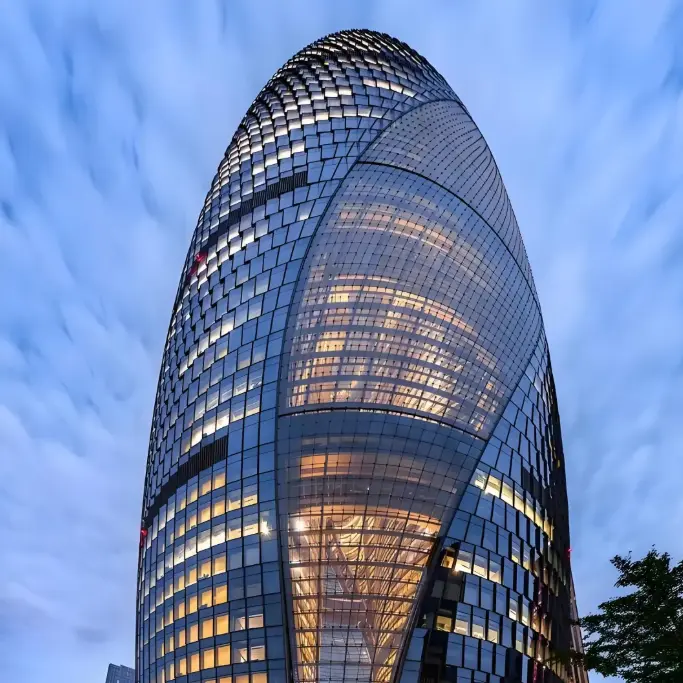

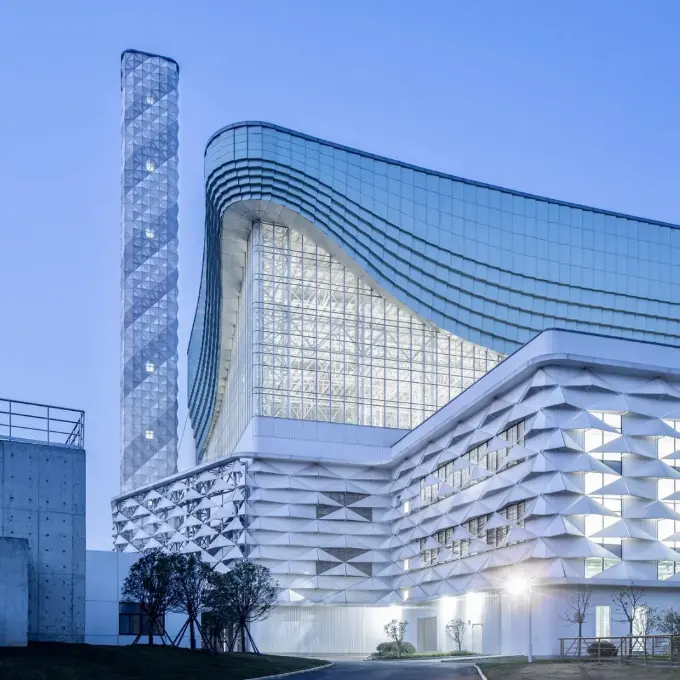

Supports diverse irregular shapes such as single-curved, double-curved, and irregularly folded surfaces. Panel options include hot-bent laminated glass, fluorocarbon-coated aluminum panels, and stone honeycomb panels. Light transmittance, color, and texture can be customized according to architectural requirements, perfectly matching the personalized facade design of landmark buildings.

2.Robust Structure, Safe and Resistant to Deformation

The main frame of the Irregular Shaped Unitized Curtain Walls uses 6063-T6 high-strength aluminum alloy profiles, coupled with anti-detachment spring pins and high-strength anti-torsion inserts to enhance the structure's wind and earthquake resistance, enabling it to withstand severe conditions such as strong typhoons and earthquakes. The interlocking connections between units effectively absorb temperature deformation and inter-story displacement, adapting to the structural displacement requirements of super high-rise buildings.

The overall curtain wall design has been optimized through wind tunnel testing to meet wind pressure and snow accumulation standards in different regions. The columns utilize a multi-cavity molded structure, integrating force transmission, connection, and aesthetic functions, combining structural stability with spatial adaptability.

3.Efficient Installation, Controllable Construction Schedule

The Irregular Shaped Unitized Curtain Walls employ a construction mode of factory prefabrication + on-site overall hoisting. After the units are transported to the site, they are directly connected to the pre-embedded adapters in the main structure. The pre-embedded system supports three-dimensional six-way free adjustment, absorbing construction errors in the main structure and ensuring precise installation positioning.

Compared to traditional modular curtain walls, construction efficiency is increased by over 50%. It allows for simultaneous and overlapping work with the main structure, significantly shortening the overall construction period. Furthermore, it eliminates cumbersome on-site processing, resulting in less dust and noise during construction, meeting green construction standards.

4.Multi-layered sealing for waterproofing and energy saving

Innovatively employing the principle of equal pressure and a multi-layered continuous sealing design, the unit cells are combined with weather-resistant sealing strips and structural adhesive to form multiple air chambers. This gradual pressure reduction achieves highly efficient waterproofing. A built-in concealed drainage system quickly drains any small amounts of infiltrated rainwater, preventing leakage at the source.

Irregularly shaped unitized curtain walls can be equipped with double-glazed Low-E glass and an insulating rock wool layer, offering superior thermal performance and effectively reducing building energy consumption. The panel surface undergoes fluorocarbon coating and tempering processes, making it resistant to UV rays and acid rain corrosion, ensuring a long outdoor service life, and being easy to clean and wear-resistant.

5. Universal Adaptability, Guaranteed Quality

The entire system complies with the "Construction and Acceptance Standards for Irregular Shaped Curtain Walls," ensuring multiple performance aspects including fire resistance, lightning protection, and sound insulation. Hardware accessories are made of 304 stainless steel, offering corrosion resistance and high load-bearing capacity. All materials undergo witnessed sampling and re-inspection, guaranteeing quality.

Adaptable to various irregularly shaped building facades, including high-rise office buildings, commercial complexes, cultural venues, and high-end hotels. It creates visually striking architectural landmarks while meeting practical building envelope needs, achieving a high degree of unity between aesthetics and function.

Product FAQ

1. What irregular shapes can Irregular Shaped Unitized Curtain Walls achieve, and what is the customization precision?

Supports all types of irregular shapes, including single curves, double curves, irregular folds, and polygonal warps. Based on BIM 3D detailed design, factory processing precision error is ≤±2mm, accurately reproducing the irregular details of architectural designs.

2. What are the options for core substrates and panels, and what are their characteristics?

The main frame is made of 6063-T6 high-strength aluminum alloy profile, which is structurally stable and resistant to deformation. The panels can be selected from hot-bent laminated glass (transparent and safe), fluorocarbon coated aluminum single panel (flexible shape and weather resistant), and stone honeycomb panel (natural texture and high strength). All thicknesses and specifications can be customized according to requirements.
