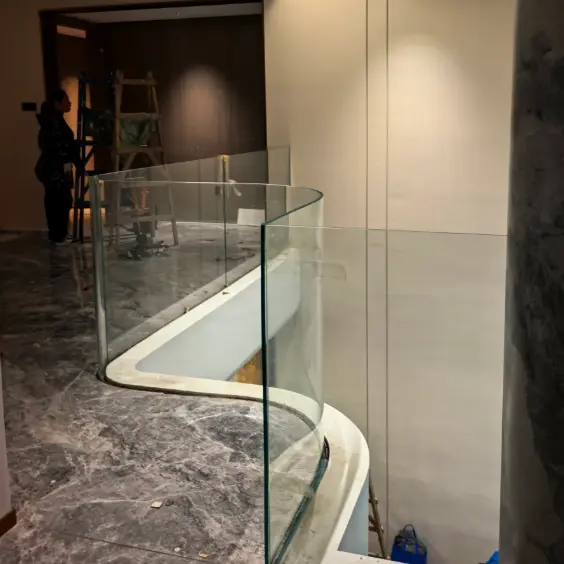

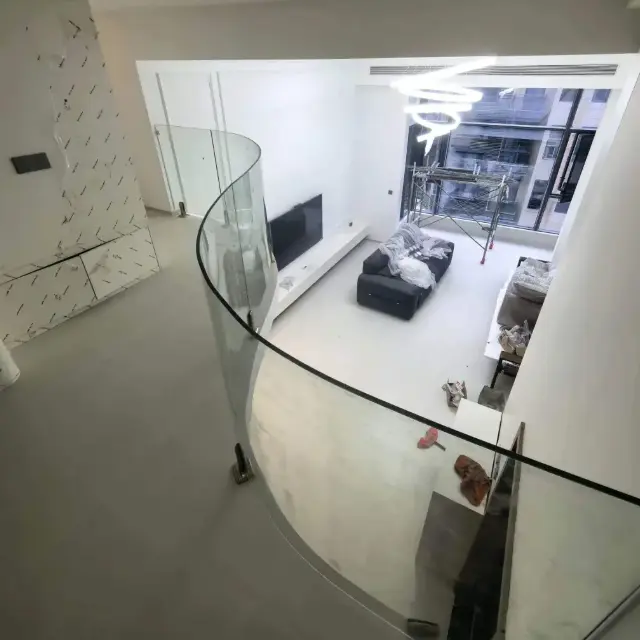

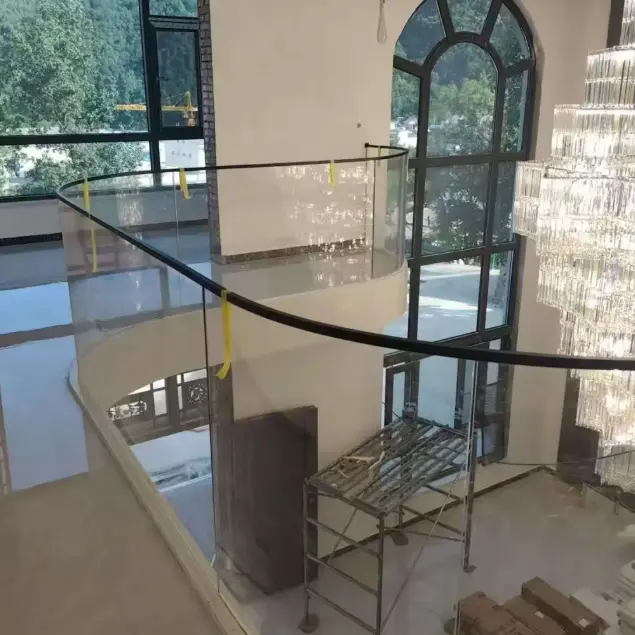

Curved Glass Railings

Curved Glass Railings use 3C certified laminated tempered glass, paired with aerospace-grade aluminum alloy and 304 stainless steel support components. They offer both a transparent visual texture and excellent impact resistance and weather resistance. Customized curvature is available, seamlessly integrating with various architectural styles such as modern minimalist and new Chinese styles. They are widely applicable to high-end residences, commercial complexes, cultural tourism projects, and other diverse scenarios, achieving a dual improvement in practical function and spatial aesthetics.

The Curved Glass Railings frame is made of selected 304 stainless steel and waterproof aluminum alloy, with a surface treated with fluorocarbon spraying and brushed finish for double anti-corrosion protection. It effectively resists corrosion from pool water and oxidation in humid environments, ensuring long-term use without rust or fading, providing both stability and durability. The glass part is treated with professional anti-fog and anti-water stain technology, preventing water stains and fogging, maintaining transparency and cleanliness. The outdoor swimming pool model is additionally coated with an anti-ultraviolet layer, easily withstanding the challenges of outdoor environments exposed to sun and rain, making it suitable for both indoor and outdoor swimming pool scenarios.

Core Product Advantages and Technology

1. Main Features

Relying on CNC constant temperature kilns and precision molds, we achieve millimeter-level curvature precision control. The bending arc can be flexibly customized according to the on-site space. Whether it's the small radius curve of a spiral staircase or the gentle large arc of a viewing platform, it can be integrally hot-bent and formed, avoiding the visual discontinuity and potential maintenance problems of straight panel splicing. Curved Glass Railings strictly control the heating and cooling rhythm during the manufacturing process, eliminating deformation and self-explosion problems caused by uneven glass stress, ensuring a smooth and continuous curved surface that perfectly fits the contours of irregularly shaped buildings, maximizing spatial transparency and aesthetic lines.

2. Glass

The core glass of the railing uses 6+1.52PVB+6mm laminated tempered glass (upgradable to 10-19mm as needed), treated with 630℃ high-temperature hot bending + rapid tempering. Its strength is 5 times that of ordinary glass, and when broken, the fragments adhere to the PVB film layer without scattering, preventing scratches from the source; the glass edges are finely ground and chamfered on both sides, providing a smooth and comfortable touch without sharp edges.

The support structure uses 6063-T5 aerospace-grade aluminum alloy or thickened 304 stainless steel. The columns have built-in load-bearing cores, and the bottom is fixed with embedded anchors/chemical anchors. It has excellent impact resistance and wind pressure resistance, meeting the load specifications for elevated protection, and is resistant to climbing, collisions, and other daily use scenarios.

3. Processing Guarantee

We provide a one-stop customized service, from on-site 3D scanning and measurement, 3D design scheme drawing, to standardized factory production, customized packaging and transportation, and professional on-site installation by our team, with real-time feedback at every stage; for narrow passages, slopes, and other special construction environments, we are equipped with special handling and installation equipment to ensure efficient and precise construction. After product delivery, we provide comprehensive after-sales service, including regular inspections and parts replacement, ensuring a worry-free process from design to completion and guaranteeing the long-term stable use of the railing.

FAQ

1. What is the customization range for the curvature of Curved Glass Railings?

We support curvature customization with a radius of 500mm-∞. Small radii are suitable for spiral staircases, and large curved surfaces are suitable for curved balconies/observation decks. Precise modeling can be achieved based on on-site measurements, achieving millimeter-level curvature matching.

2.What are the safety standards for the core glass, and is upgrading supported?

Standard configuration includes 6+1.52PVB+6mm 3C certified laminated tempered glass, complying with building safety regulations for elevated areas; upgrades to 8+1.52PVB+8mm, 10+2.28PVB+10mm, and other specifications are available upon request. Extra-thick 19mm laminated glass can be customized for super high-rise buildings and commercial applications.
