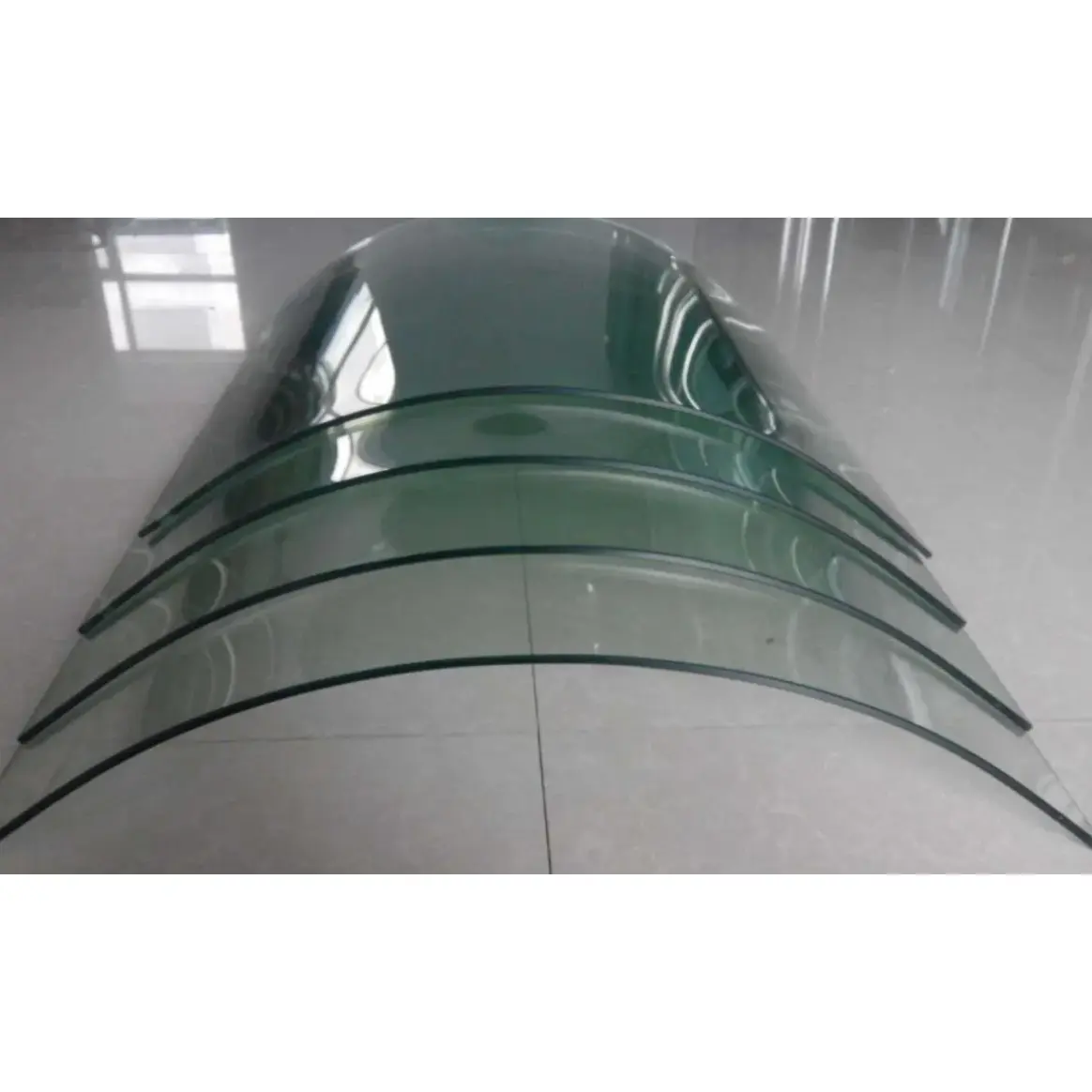

Tempered Curved Glass

Yehaoxuan Tempered Curved Glass is available in thicknesses ranging from 5-19mm and supports customized curvature, adapting to diverse application scenarios such as curved curtain walls, skylights, and stair railings. It possesses excellent impact resistance, high temperature resistance, and wind pressure resistance. When broken, it shatters into blunt-angled granules, ensuring safety throughout its use.

Detailed Introduction

1. Core Technology and Materials

Tempered Curved Glass uses high-quality float glass as the base material, processed in a precisely temperature-controlled hot bending furnace. The bending radius and curvature error are controlled within ±1mm, ensuring perfect surface conformity. It then undergoes rapid cooling and tempering treatment, creating uniform compressive stress on the surface, improving overall strength and thermal stability, and effectively avoiding appearance problems such as wavy patterns and stress marks. The frame can be made of 304 stainless steel or fluorocarbon-coated aluminum alloy, matching the glass curvature and providing excellent sealing performance.

2. Core Advantages

The smooth and dynamic lines adapt to irregularly shaped spaces, enhancing the visual layering of the building; the light transmittance is over 85%, with no significant optical distortion, balancing lighting and aesthetics; it has strong weather resistance, capable of withstanding temperature differences from -20℃ to 60℃, and meets wind pressure resistance standards, making it resistant to aging in outdoor use; it has a high safety factor, as it does not shatter into sharp fragments when broken, reducing the risk of accidental injury.

3. Specifications and Applicable Scenarios

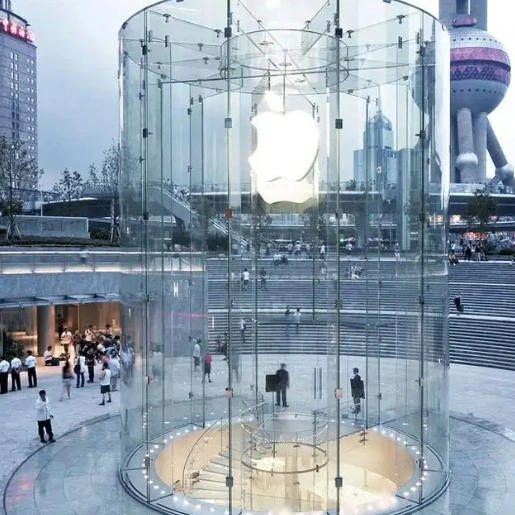

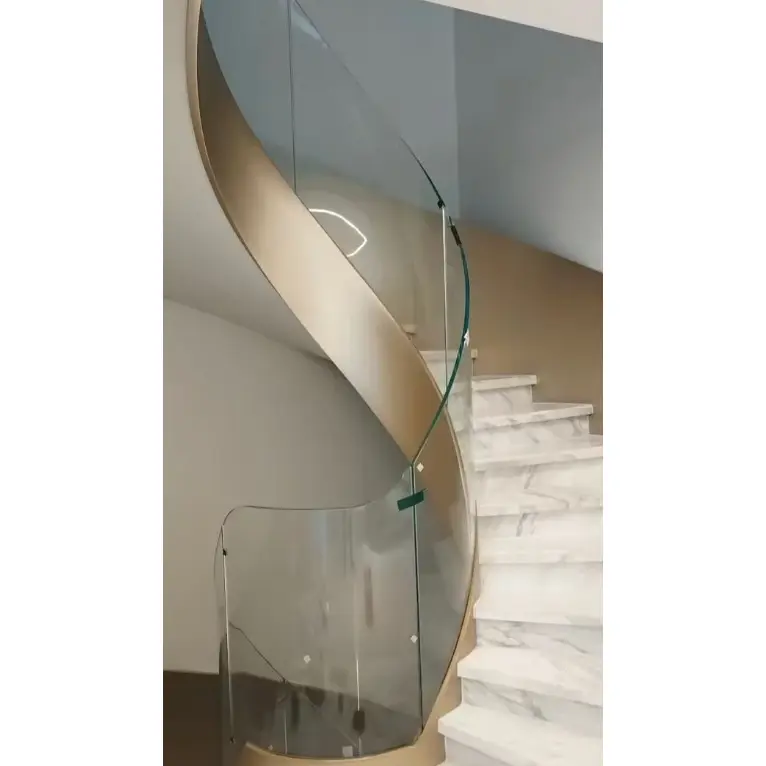

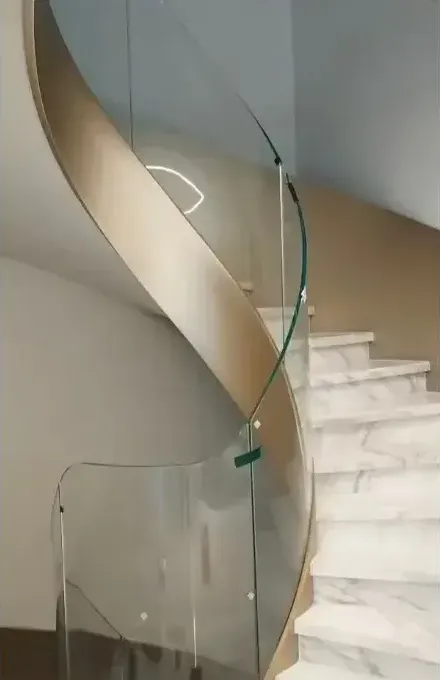

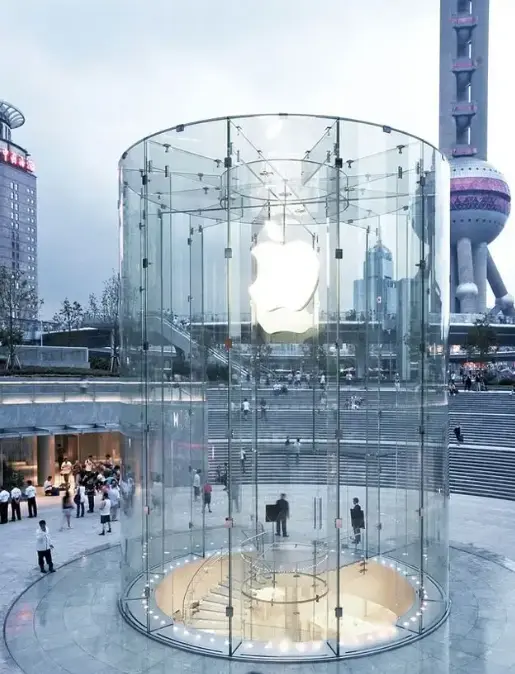

Tempered Curved Glass is available in thicknesses of 5-19mm, with a maximum size of 2400x3200mm and a minimum size of 600x200mm, supporting single-curve and double-curve customization; it is suitable for residential buildings (curved balconies, spiral stair railings), commercial spaces (glass curtain walls, skylights, sightseeing elevators), and public buildings (exhibition hall partitions, scenic viewing platforms), adapting to various styles such as modern minimalist and light luxury.

FAQ

1. Q: Can the curvature and size of the tempered curved glass be fully customized?

A: Full customization is supported. The bending radius, curvature direction, and product dimensions can be adjusted based on on-site measurements to precisely fit irregular spaces. A 3D rendering will be provided for confirmation before production to ensure a perfect fit.

2. Q: What are the advantages of tempered curved glass compared to ordinary curved glass?

A: After tempering, the strength is significantly increased, providing stronger impact resistance and wind pressure resistance. It also has excellent thermal stability and can withstand drastic temperature changes without shattering. Furthermore, when broken, it shatters into small, blunt-edged pieces, making it far safer than ordinary curved glass.
