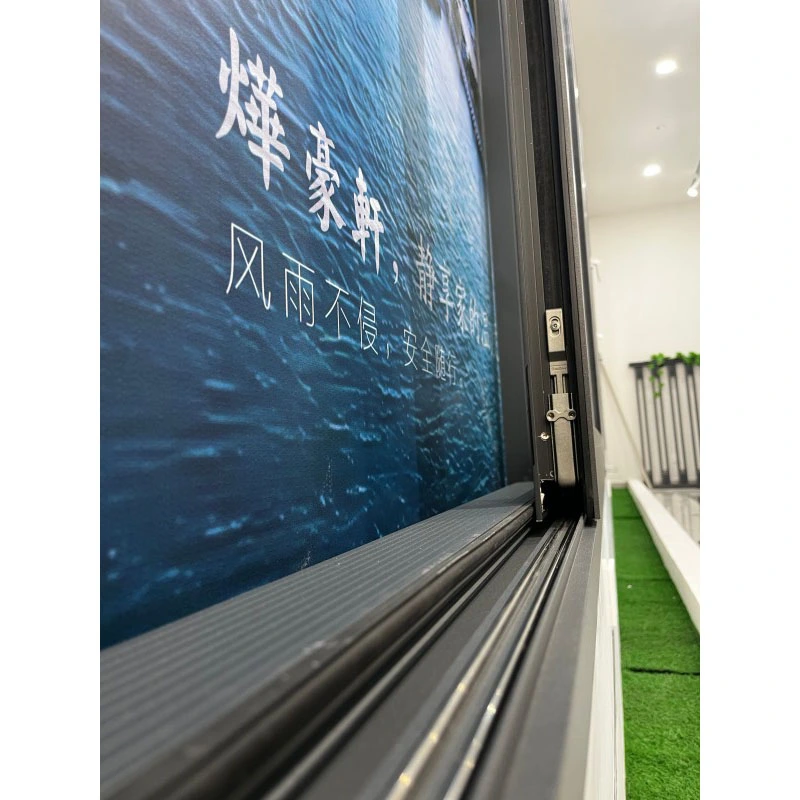

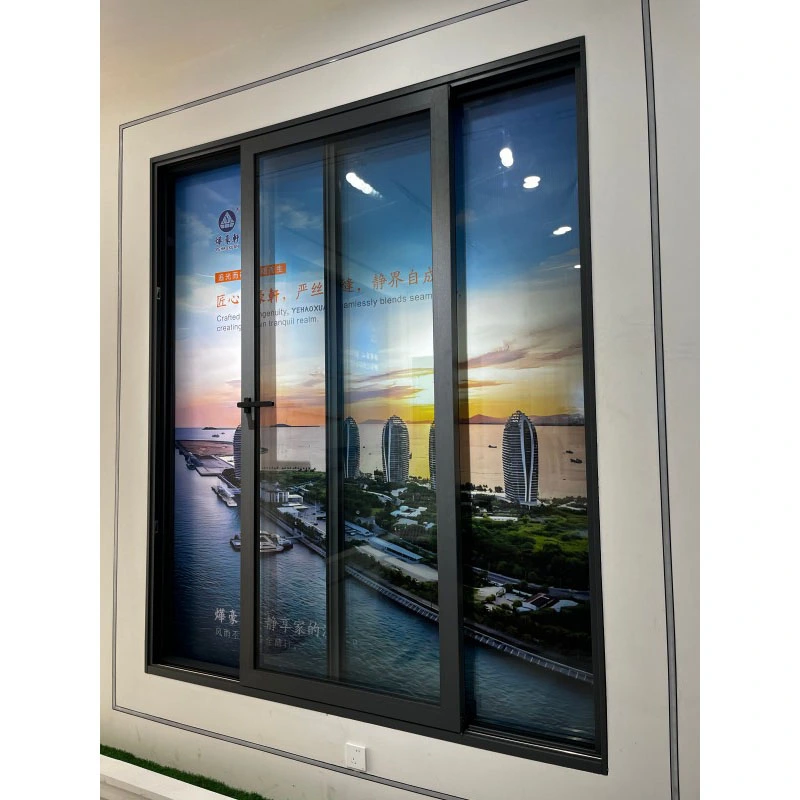

Side Pressure Sliding Door

The YEHAOXUAN Side Pressure Sliding Door utilizes a unique lateral compression structure design, a revolutionary upgrade to traditional sliding doors. When closed, the door leaf moves horizontally and compresses inward under the precise drive of the hardware system, forming a uniform force distribution with the door frame through the multi-point locking system. This full-circumference uniform compression mechanism completely eliminates gaps, fundamentally solving the problems of air leakage, water seepage, and sound insulation inherent in traditional sliding doors.

Key Product Features:

1.Superior Sealing Performance

The Side Pressure Sliding Door utilizes a high-elasticity EPDM sealing strip and a multi-chamber sealing structure, achieving industry-leading levels in airtightness, watertightness, and wind pressure resistance. Sound insulation is improved by over 30% compared to standard sliding doors, effectively blocking outdoor noise.

2.Dual-Function Operation

Easy horizontal sliding for everyday entry and exit; rotating the handle 180° activates the side-pressure locking system, providing one-step sealing and anti-theft protection.

3.Robust and Durable Structure

The Side Pressure Sliding Door is constructed from high-strength 6063-T5 aluminum alloy with a wall thickness of 1.8mm, paired with high-precision heavy-duty hardware. It can withstand loads up to 400kg, suitable for extra-large floor-standing designs.

4.Adaptable to Various Climates

Equipped with a concealed drainage system and anti-tipping design, it effectively prevents rainwater backflow, ensuring stable operation even in harsh weather conditions such as typhoons, heavy rain, and severe winters.

Real-world Application Cases

1.Case : Luxury High-Rise Residential Building in Shanghai

2. Project: 18-story penthouse apartment overlooking the Huangpu River

3. Challenges: Strong winds at high altitudes, city traffic noise, and unobstructed views

4. Solution: Installation of Yehauxuan 127 Series Side Pressure Sliding Door (6-meter wide extra-large floor type)

5. Results:

- Even during typhoon season, there is no air leakage or howling; excellent indoor airtightness.

- Street noise from 75 decibels outside is reduced to 38 decibels indoors, creating a tranquil living space.

- Unobstructed views, combining safety, comfort, and aesthetics.

FAQ

Q1: What is the difference between a Side Pressure Sliding Door and a regular sliding door?

A: Side pressure doors can be closed by pressing tightly to seal, providing far superior sound insulation, windproofing, and dustproofing compared to regular sliding doors, offering a user experience closer to that of a hinged door.

Q2: Is the operation of the side pressure structure complicated?

A: Not complicated. Opening it is as convenient as a regular sliding door, and closing it is as simple as pressing it to lock it in place – easy to use.

Q3: What scenarios is it suitable for?

A: Widely used in residences, apartments, high-end commercial spaces, and indoor/outdoor partition areas where sound insulation, sealing, and comfort are crucial.
