Insulated Glass for Doors and Windows

Yehauxuan Insulated Glass for Doors and Windows consists of two or more layers of flat glass. The glass sheets are made of high-purity float glass or ultra-clear glass, which undergoes tempering treatment to significantly improve strength, resulting in a spontaneous breakage rate as low as 0.1‰. Our products are equipped with a dual-channel sealing system and inert gas filling, providing excellent thermal insulation, sound insulation, and anti-condensation performance, and have passed 3C safety certification.

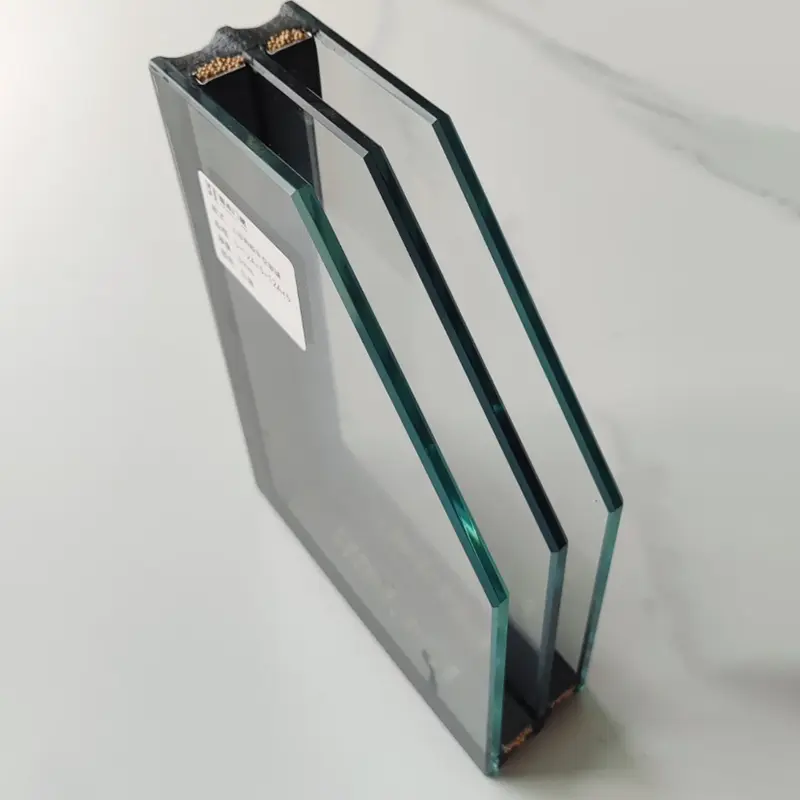

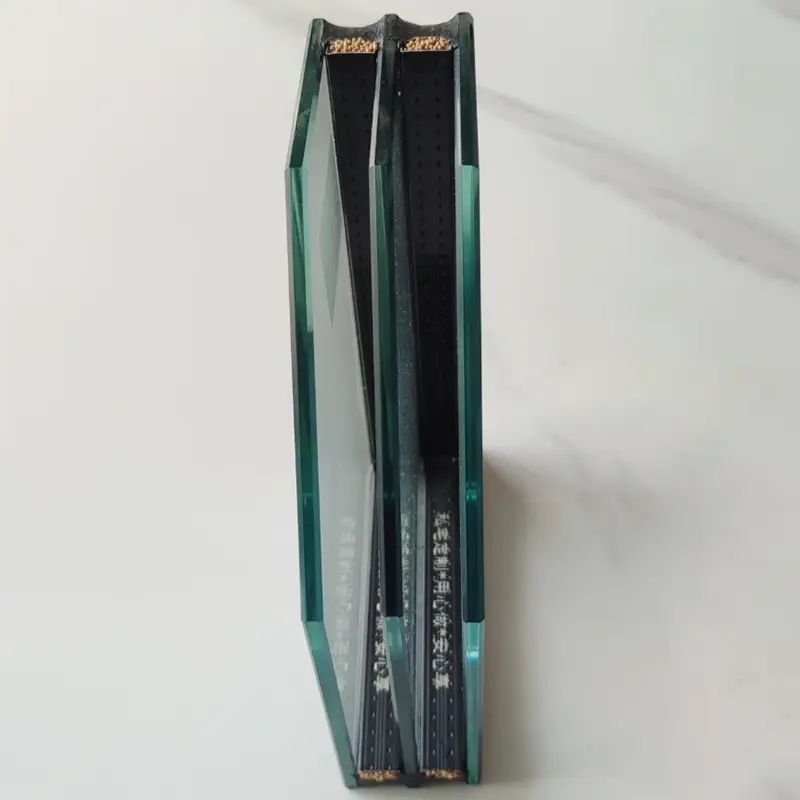

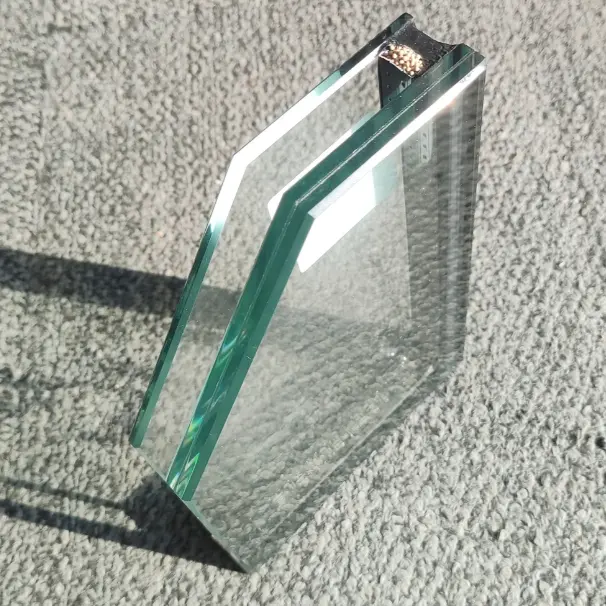

The insulated glass for doors and windows features a sealed cavity formed by aluminum spacers. This cavity is filled with dry air or an inert gas such as argon. A high-efficiency molecular sieve is embedded in the frame to absorb moisture. The entire structure is sealed with a double layer of hot-melt butyl adhesive and silicone sealant, ensuring airtightness and watertightness, thus extending its service life.

Core Performance Advantages

1.Thermal Insulation and Energy Saving

The gas cavity has a low thermal conductivity coefficient, reducing it to 2.0-3.0 W/(㎡·K). This reduces indoor heat loss in winter and blocks the intrusion of high outdoor temperatures in summer, significantly reducing air conditioning and heating energy consumption, meeting energy conservation and environmental protection requirements.

2.Sound Insulation and Noise Reduction

The multi-layered structure of the insulated glass for doors and windows, combined with the gas layer, forms an acoustic barrier, reducing external noise by 25-35 decibels. It effectively filters traffic, industrial, and residential noise, creating a quiet environment for bedrooms, studies, and other spaces.

3.Anti-condensation and anti-fog

The air inside the sealed cavity remains dry. Even with significant temperature differences between indoors and outdoors, the inner surface temperature of the glass is unlikely to reach the dew point, effectively preventing condensation and frost, maintaining glass transparency, and preventing mold growth.

4.Safe and durable

Tempered glass breaks into blunt-angled pieces without sharp edges, reducing the risk of injury. High-quality sealing materials and structural design resist moisture and dust corrosion, with a designed service life of over 25 years.

Suitable Scenarios

Insulated Glass for Doors and Windows is widely applicable to door and window systems in various buildings such as residences, office buildings, and shops. It is especially suitable for spaces facing the street, near noise sources, or with high requirements for thermal and sound insulation. Different glass colors and coating processes (such as Low-E coating) can be selected according to architectural style and needs, balancing practicality and aesthetics.

FAQ

1.What should I do if the inside of the Insulated Glass for Doors and Windows fogs up?

Fogging is often caused by seal failure allowing moisture to enter. Local repairs are unlikely to completely resolve the issue; it is recommended to replace the entire insulated glass unit. Choosing a high-quality product with double seals can avoid this problem.

2. How to improve the sound insulation of insulated glass?

You can choose asymmetrical glass thickness combinations (such as 5mm + 6mm), increase the cavity width (12-16mm is ideal), or fill it with argon gas. Simultaneously, using a window frame and sealing strip with good sealing performance will further improve sound insulation.
