Insulated Glass for Curtain Walls

Yehaoxuan is deeply committed to the high-end Insulated Glass for Curtain Walls field, becoming a core supplier in China and gaining global recognition through its rigorous quality and cutting-edge design. The brand integrates Eastern philosophy and minimalist aesthetics, creating curtain wall glass that meets the needs of transparent vision while possessing all-round practical performance. As a professional manufacturer, we adhere to the concept of precision manufacturing, relying on our own factory's standardized system, from material selection to factory delivery, ensuring that every piece of glass meets the quality requirements of high-end buildings.

Product Details

1. Design Concept and Appearance

With "natural integration into architecture" as its core, the Insulated Glass for Curtain Walls uses minimalist frames and a column-free 90° corner process. The profile proportion is minimized, and the glass transparency rate reaches over 95%, achieving seamless connection between scenery and space. Four profile color options are available to match various architectural styles, showcasing the beauty of architectural order.

2. Core Materials and Precision Craftsmanship

- Glass Configuration: Standard configuration is 5+20A+5 double-glazed tempered glass, with optional special glass. Argon gas filling reaches 95.5%, ensuring long-lasting energy-saving performance.

- Profile Structure: 6063-T5 primary aluminum alloy multi-chamber design (2.0mm thick), combined with vertical isotherms and five seals, strengthens thermal insulation and stability.

- Safety Technology: The glass undergoes 720℃ homogenization treatment, resulting in a low self-explosion rate of 1/10000.  Combined with load-bearing pressure lines and ≥100mm metal support strips, it eliminates the risk of falling from high altitudes.

3. Four Core Performance Advantages

- High Efficiency and Energy Saving: Triple energy-saving design, compliant with Green Building Three-Star and LEED standards, reducing air conditioning energy consumption by more than 30%, environmentally friendly and saving operating costs.

- Excellent Sealing and Protection: Utilizing high-quality sealing strips and vulcanized welding technology, achieving airtightness level 8 and watertightness level 6, with strong wind pressure resistance, suitable for super high-rise buildings and various climates.

- Quiet and Noise Reduction: Double sound insulation design, sound insulation performance reaching 35dB, effectively isolating external noise, suitable for high-end noise reduction scenarios.

- Intelligent Adaptation: Can be equipped with an original German control system, supporting automatic window closing in windy and rainy conditions, compatible with various opening methods, and flexibly adaptable to different scenarios.

4. Diverse Application Scenarios

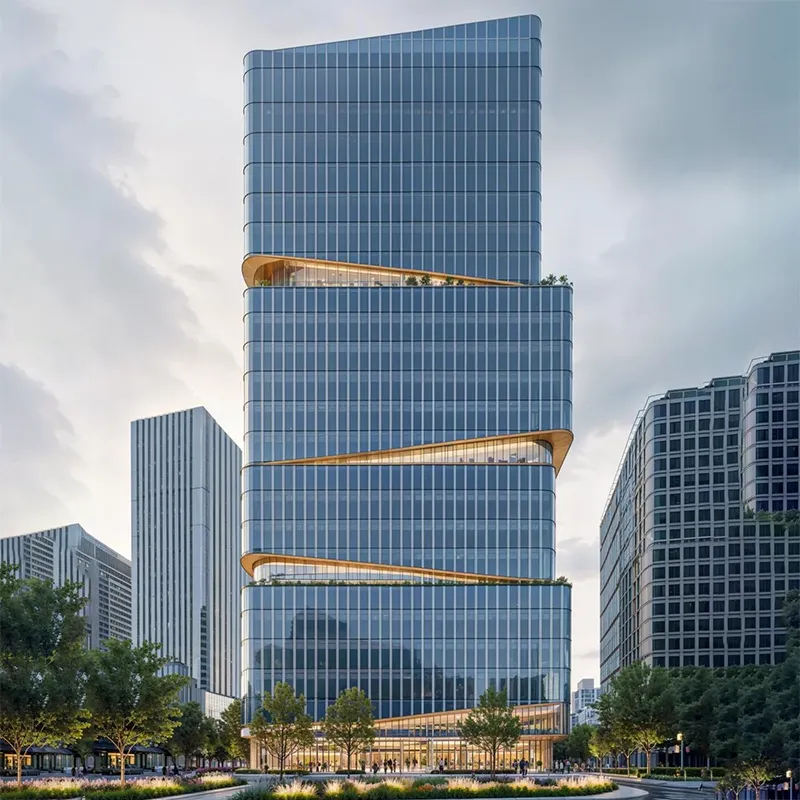

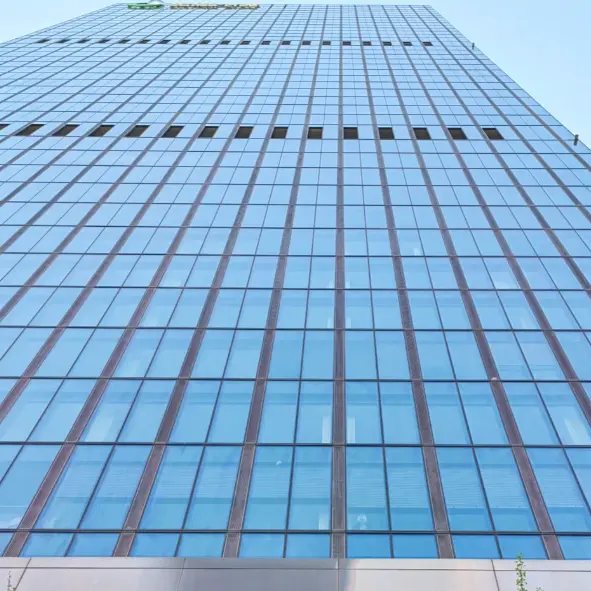

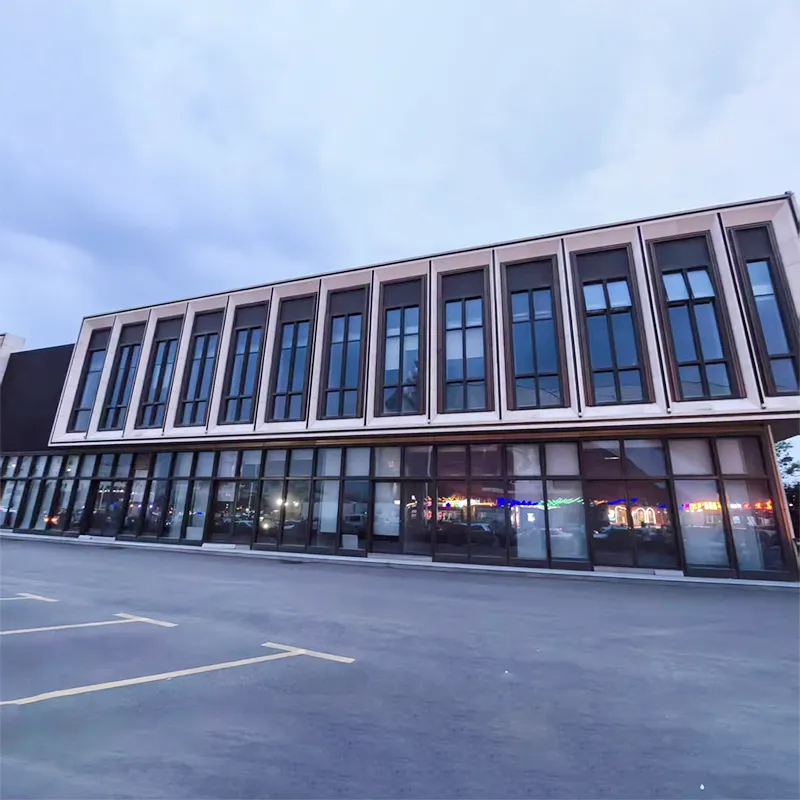

Yehaoxuan Insulated Glass for Curtain Walls is widely applicable to high-end buildings such as commercial complexes, office buildings, hotels, and museums, especially suitable for landmark buildings and areas with high traffic, making it a preferred product for high-end curtain walls.

FAQ

1. What are the safety guarantees of Yehaoxuan Insulated Glass for Curtain Walls?

Answer: The glass undergoes 720℃ homogenization treatment, resulting in an extremely low self-explosion rate; combined with a tempered laminated structure, metal support strips, and load-bearing pressure lines, it complies with national standards, ensuring safety for high-rise buildings.

2. How is the energy-saving effect of the product specifically reflected?

Answer: Through Low-E coating, argon-filled double glazing, and multi-chamber profiles, it reduces air conditioning energy consumption by more than 30%, meeting mainstream environmental protection standards and providing a comfortable temperature in both winter and summer.

3. Can it be customized according to the specific needs of the building?

Answer:  Full customization is supported, including customizable dimensions, opening methods, profile colors, and the integration of intelligent systems and special glass to provide exclusive solutions.
